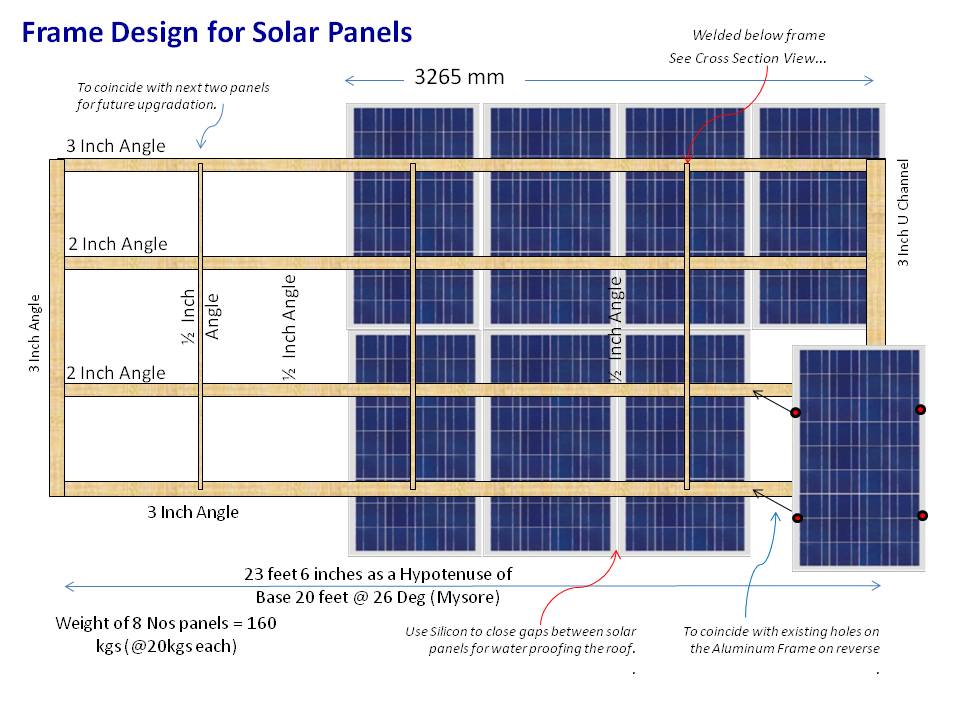

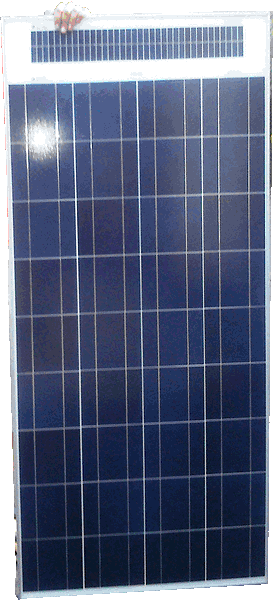

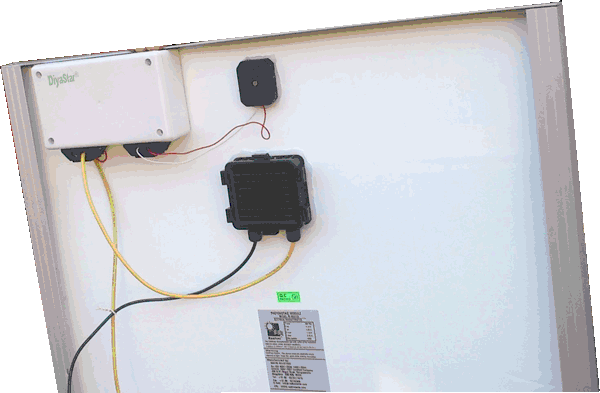

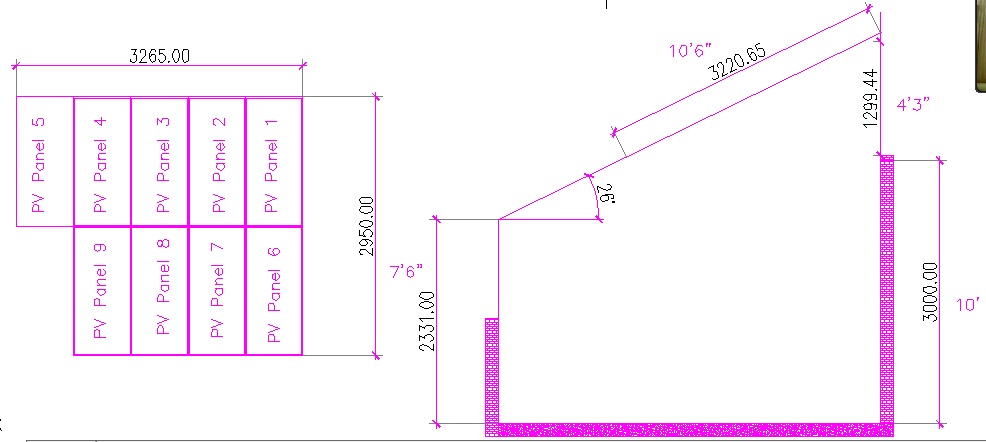

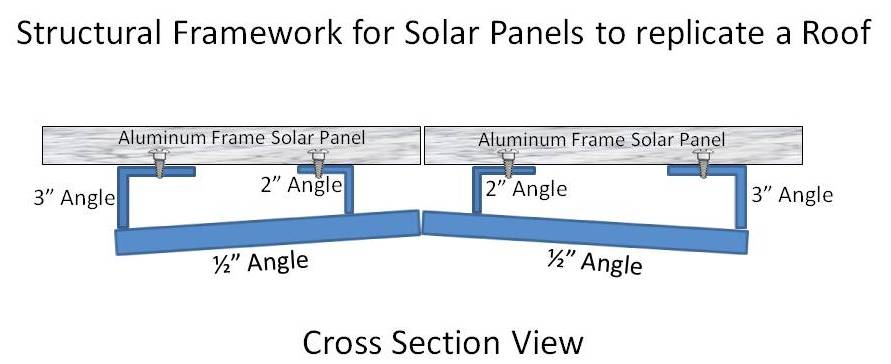

Venus supplies Solar Panels from reputed MNRE approved Solar Panel manufacturers in India. Since DiyaStar works on 12V system, the maximum size of a panel can be upto of 125WP. Sizes from 5WP, 12WP, 40WP, 70WP, 100WP and 125WP are easily available. Our design Integrated Sensor model PV Solar Paneel can light up either 4 to 5 Nos x 12W Lights or 2 to 6 numbers of ceiling, wall and exhaust fans, or water pumps for home water fountains, grey water processing and aquaponics. This integrated panel is ideally suited for single bedroom suites / homes, shops and establishments. Venus also offers structural design for fabrication of panels to replicate on the terrace. The positioning is optimized to enable a cool roof during summer. To ensure that the solar panels are meshed with each other that only a thin film of silicon would render it water proof, particularly on the overhand, it is important to design the structural support so that there is no gap between panels. Below is a suggested method...

Solar Panels It is important to recognize Solar Panels. The below Demonstration Model for educational institutions is comprised of two solar panels, almost equally sized. However, while the horizontal one delivers 12W power, the vertial once delivers 4 to 5W power. This anomaly occurs due to manufacturing defects. Venus used these rejected panels and uses them to act as sensors for demonstration models and educational aids.
